Multiple Sample Changer Turntable TTT-710

Continuous and automatic multiple-sample measurement capability.

Continuous and automatic measurement of up to 100 samples possible

  • 4 types of tables (for 12, 18, 36 and 60 samples) are available for a wide range of purposes.
  • Also, a 100-sample table is available as a factory-installed option.

Easy maintenance

  • Electrode cleaning tank and electrode storage tank are placed on the front of the unit.
  • This enables easy maintenance of tubes, electrodes, etc.

Wide-range of electrode cleaning modes available

  • Pure water shower cleaning comes as a standard feature.
  • Chemical cleaning, bubbling cleaning, and air blow modes are also available as optional features.

Analyzer mount for extra space-saving (optional)

  • A dedicated analyzer mount is available for space-saving installation of the unit, includes analyzer.
  • (Mounts are available in 2 types – one for R-series and another for automatic titrators.)

Turntable with a thermostatic tank (factory-installed option)

  • Multiple-sample measurement at a constant temperature can be performed (The circulation-type thermostatic tank that can be externally added to a system must be purchased separately.)

Next sample stirring function (factory-installed option)

  • The instrument can prepare the next sample to be tested by stirring the sample in advance.
  • This function helps when it takes a long time for the sample to mix or react with reagents properly.

Supported models include: pH Meter HM-30R, Conductivity Meter CM-30R, Multi-function Water Quality Meter MM-60R, Automatic Titrator AUT-701, Acidity Titrator TA-70, Salinity Titrator TS-70, Potentiometric Titrator TP-70 and Automatic Burette ABT-511

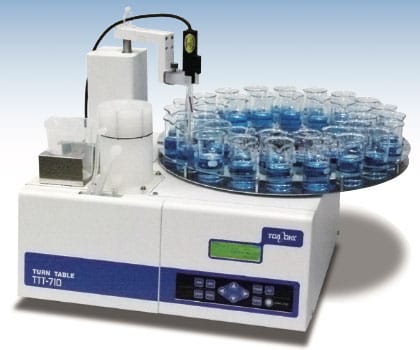

TTT-710 Turntable
TTT-710 Turntable
TTT-710 Turntable
TTT-710 Turntable
TTT-710 Turntable
TTT-710 Turntable

The instrument can be added to various systems


Standard Accessories

Display LCD
Number of samples / Beakers used
  • 12 samples 200mL beaker, 300mL tall beaker (Our recommendation: Glass beakers manufactured by AGC TECHNO GLASS CO., LTD. or HARIO CO., LTD.)
  • 18 samples 100mL tall beaker (Our recommendation: Glass beakers manufactured by AGC TECHNO GLASS CO., LTD. or HARIO CO., LTD.)
  • 36 samples 30mL beaker, 50mL tall beaker (Our recommendation: Glass beakers manufactured by AGC TECHNO GLASS CO., LTD.)
  • 60 samples 20mL dedicated beaker (H-20 beaker manufactured by NICHIDEN RIKA-GLASS CO., LTD.)
  • 100 samples 20mL dedicated beaker (H-20 beaker manufactured by NICHIDEN RIKA-GLASS CO., LTD.)
Stirring method
  • Standard: Magnetic stirring
  • Option: Propeller stirring
External control input/ output
  • For RS-232C (R-series, AUT-701/AUT-501,TA-70/TS-70/TP-70)
  • Input/output for OPTION2 (R-series, G-series)
  • Input/output for automatic burette ABT-511 and ow comparison unit FAR-201A
  • Input/output for external control box
  • Output for air pump box
  • Input for liquid level sensor signal (cleaning water 1, waste water)
  • Output for over-head stirrer unit power
Cleaning mode
  • (1)Pure water shower → Air blow
  • (2)Pure water bubbling → Pure water shower → Air blow
  • (3)Chemical shower → Pure water shower → Air blow
  • (4)Chemical bubbling → Pure water shower → Air blow
  • (5)Chemical bubbling → Pure water bubbling → Pure water shower → Air blow
  • (6)Chemical bubbling → Chemical shower → Air blow
  • (7)Chemical shower → Air blow
  • (8)Chemical bubbling → Pure water bubbling → Chemical shower → Air blow

  • Note:
  • Air blow cleaning is available when the optional air pump box is installed.
  • Chemical cleaning is available when the optional external control box and chemical pump are installed.
  • Bubbling cleaning is available when the optional air pump box and waste water valve are installed.
Cleaning time 0-9999 seconds
Air blow frequency 1-9 times
Measurement repetitions for same sample 1-9 times
Detection of final sample Possible by using completion detection pin or defining the final sample number by key operation
Cleaning tank material Polypropylene
Stirring time before measurement 0-9999 seconds
Waiting time before measurement 0-9999 seconds
Liquid level alarm
  • Cleaning water 1 (pure water): Empty
  • Cleaning water 2 (chemical liquid): Empty (when the optional chemical liquid level sensor is connected)
  • Waste water: Full
Performance- guaranteed temperature 5-40°C
Power requirements 100-240VAC, 50/60Hz
Power consumption: Standard
  • When 100VAC is applied: Approx. 60VA at the maximum
  • When 240VAC is applied: Approx. 90VA at the maximum
Power consumption: When optional is connected
  • When 100VAC is applied: Approx. 100VA at the maximum
  • When 240VAC is applied: Approx. 130VA at the maximum
Dimensions
  • Main unit (not including table) Approx. W440 x H409 x D391mm
  • When table is attached Approx. W566 x H409 x D507mm
  • Maximum dimensions when in operation Approx. W566 x H534 x D507mm
Weight of main unit Approx. 16kg (Not including table and electrodes)

Standard Accessories

Table (Specify either for 12, 18, 36 or 60 samples)
Electrode cartridge (Specify a suitable type depending on the number of samples/purpose)
Cleaning water tank (10L, with liquid level sensor)
Waste water tank (10L, with liquid level sensor)
Cleaning water tube (3m)
Waste water hose (1.5m)
Completion detection pin
Power cord
2P-3P conversion adapter
Disposable beaker
Operation manual

Options

Product Code No.
Turntable connection cable (2m) Serial control cable for connection to HM-30R, CM- 30R or MM-60R 118C087
Turntable connection cable (2m) Cable for connection to AUT-701, TA-70, TS-70 or TP-70 7075670K
OPTION2 connection cable Analog control cable for connection to R-series/ G-series 7401740K
ABT-511 connection cable 7401750K
FAR Connection Cable 7401760K
Air pump box (for air blow) 7400560U
Air pump box (for air blow and bubbling) 7401640U
Waste water valve for TTT-710 (pinch cock) 7401650U
Waste water valve for TTT-710 (solenoid valve) 7401660U
Propeller stirring unit (for table for 12 or 18 7401670U samples) 7401670U
Propeller stirring unit (for table for 36 samples) 7401680U
Propeller stirring unit (for table for 60 or 100 7401690U samples) 7401690U
Analyzer mount (for R-series) 7401700U
Analyzer mount (for AUT-701) 7401710U
